4m Backyard Studio-Bed/Bath/Office

$12,539.00
Description

This 4m backyard studio is a perfect example of multi-functional living, integrating a bedroom, office, and private ensuite within a compact footprint. It is the ideal solution for creating a private guest room, home office, or independent living space with minimalist design and full functionality.

Space Maximization: The 4m length is deeply optimized to provide complete living facilities while maintaining comfortable movement space.

All-Weather Comfort: High-standard thermal and acoustic insulation combined with large windows ensures ample natural light and a quiet environment year-round.

Ready to Use: With pre-installed plumbing and electrical systems, it can quickly transform into a functional office or guest room upon connection.



Dimensions

Open:  L3.97m*W2.18m*H2.45m(L13FT*W7FT*H8FT)

Folded:Modular Delivery (Fully Assembled)

Furniture included

Vanity/Sofa Bed/Wardrobe/Wall-mounted Fold-down Desk

Key Features

Pre-plumbed & Pre-wired


The building comes pre-plumbed and pre-wired, with hot/cold water lines and electrical circuits integrated into the walls during manufacturing. While the internal connections are ready, you will require a qualified plumber and electrician to do the final connection.

Equipped Bathroom

A fully equipped bathroom designed for convenience and style, featuring a toilet, shower, mirror, cabinetry, and a sleek vanity. Optional washing machine space


Adjustable Feet

The adjustable feet bring a high level of adaptability to your mobile home. Supporting precise height adjustments of up to 50mm, they ensure the unit remains level and stable on various uneven surfaces.The intuitive design allows for quick height adjustments without the need for heavy machinery.

Pre-fitted Interior

Pre-fitted with Vanity and Sofa Bed,Wardrobe,Wall-mounted Fold-down Desk.It is the ideal solution for creating a private guest room, home office, or independent living space with minimalist design and full functionality.

High-Strength Structure

Our homes are built with high-strength steel frames and have undergone rigorous wind and snow load testing. Designed specifically for the Australian climate, they ensure stability, safety, and durability in all weather conditions.

Our Features

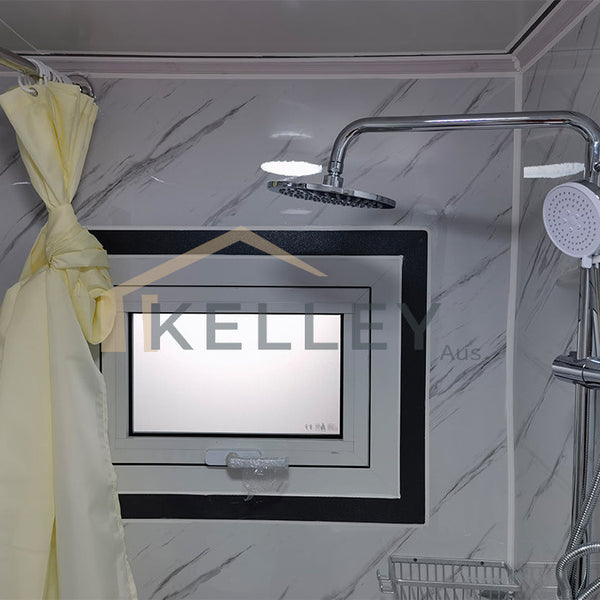

Shower

Shower

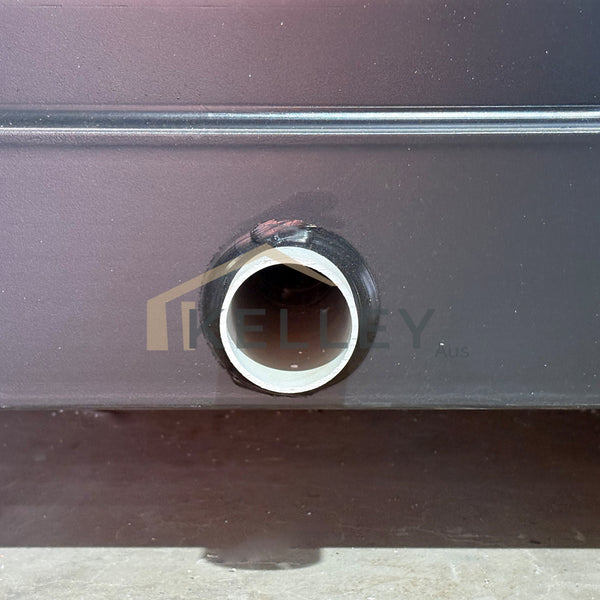

Plumming Connections

Plumming Connections

Plug and Play

Plug and Play

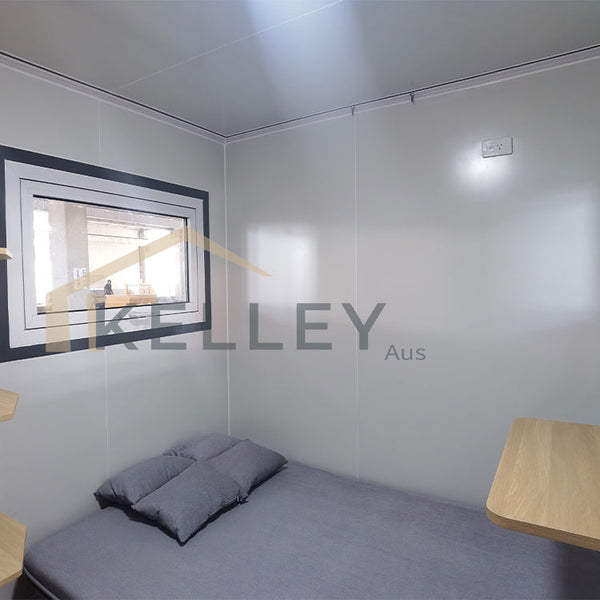

Sofa Bed

Sofa Bed

Adjustable Base

Adjustable Base

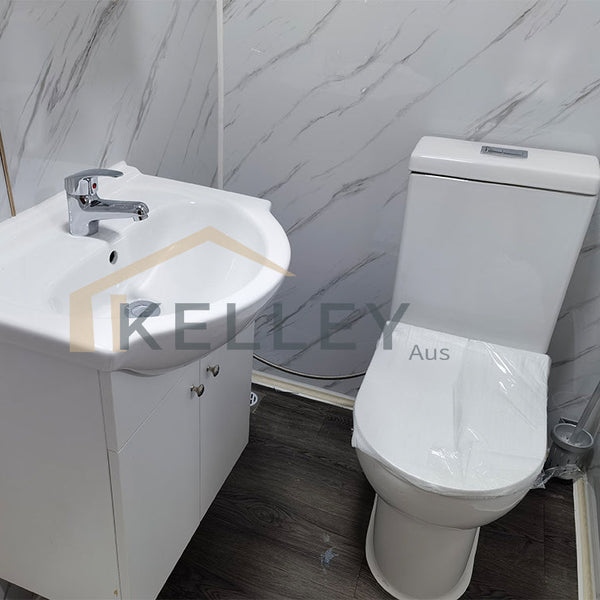

Bathroom

Bathroom

Shaving Cabinet

Shaving Cabinet

Switchboard

Switchboard

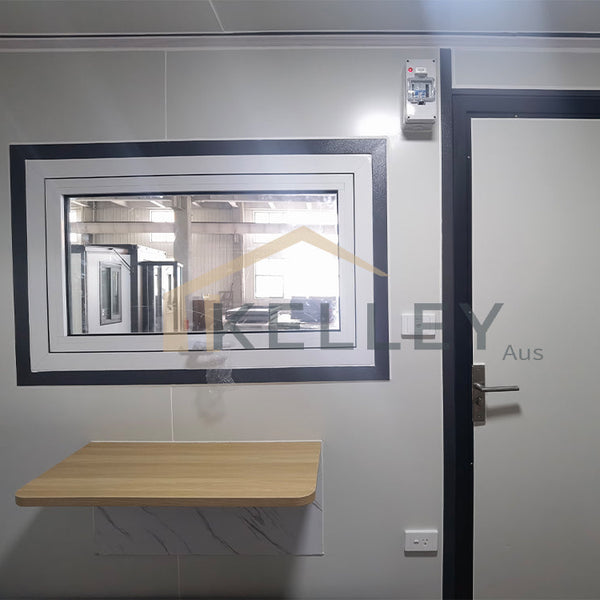

Wall-mounted Fold-down Desk

Wall-mounted Fold-down Desk

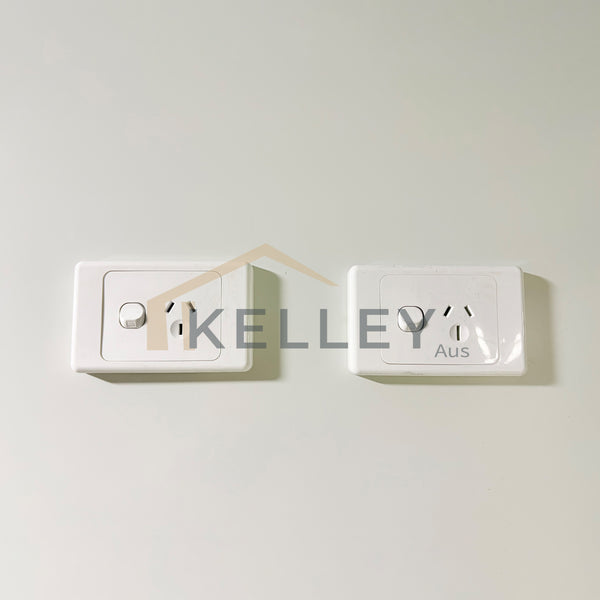

PowerPoints

PowerPoints

Product Information

Structure & Frame

Main Frame
Heavy-duty galvanised steel frame
Coating
Zinc-rich primer and epoxy finish
Compliance
Engineered to Australian Wind Rating standards

Windows & Doors

Windows
Plastic/Aluminium framed windows come with flyscreens
Glazing
Double-glazed toughened glass
Entry Doors
Aluminum Alloy Door Frame + EPS Board

Exterior Walls & Roofing

With Cladding
50mm EPS panel walls & 20mm cladding
Without Cladding
50mm EPS panel walls
Roofing
Steel cladding outer and 40mm EPS sandwich panels

Interior Walls

Interior Walls
50mm EPS panel with an off white finish
options
Two interior wall panel options, featuring designer-curated color schemes, are available for you to choose from.

Electrical

Electrical
All electrical components and wiring are tested to meet Australian standards.Pre-installed switches, power points (GPOs), and circuit breakers are all approved for local use.A central Electrical Distribution Board is pre-installed in a convenient, accessible location within the unit
Internal Lighting
Pre-fitted, low-draw round LED lights and integrated wall switches
Power Points
Pre-installed through out the living areas and bedrooms
Main Point
A 2.5mm 3-core cable exits the rear of the unit, providing a ready-to-use point for site-to-grid connection

Bathroom

Shower Cubicle
Shower with water-efficient, WaterMark™ certified showerhead
Toilet
Dual-flush ceramic toilet compliant with soft-close lid
Vanity & Mirror
Vanity unit with an integrated basin and matching wall mirror
Ventilation
Integrated exhaust fan to ensure a dry and fresh bathroom environment.

Plumbing

Hot & Cold
Hot and cold brass connectors are pre-fitted through the wall for easy onsite connection
Greywater
50mm PVC outlet for sinks and showers
Blackwater (Waste)
125mm PVC outlet for toilet waste
Rear Exit Point
All plumbing lines exit from the center-rear of the unit for a clean, streamlined installation

 Flooring

Sub Floor
20mm Magnesium Concrete Composite (MgO) flooring
Top Layer
2mm thick timber-look vinyl covering

Installation

Instructions
Detailed installation manuals provided
Footing Plans
Footing Plans supplied by Kelley Aus. Level site and footings prepared by customer
Electrical & Plumbing
we strongly recommend engaging qualified tradespeople to carry out any plumbing and electrical work.

Transport

Crane Truck
The truck unloads using its own integrated crane.Typically requires 2m–6m clearance from the side of the truck tray for safe setup and positioning
Tilt-Tray Truck
The unit carefully slides off the rear of the tray onto the ground,requires 10m–15m of straight-line clearance behind the truck to slide, unload, and drive away.Good site maneuverability and clear access paths are essential
Rigid Truck
The customer is responsible for organizing an on-site forklift or external crane for unloading. This option is often used for long-distance transport where local unloading equipment is available
